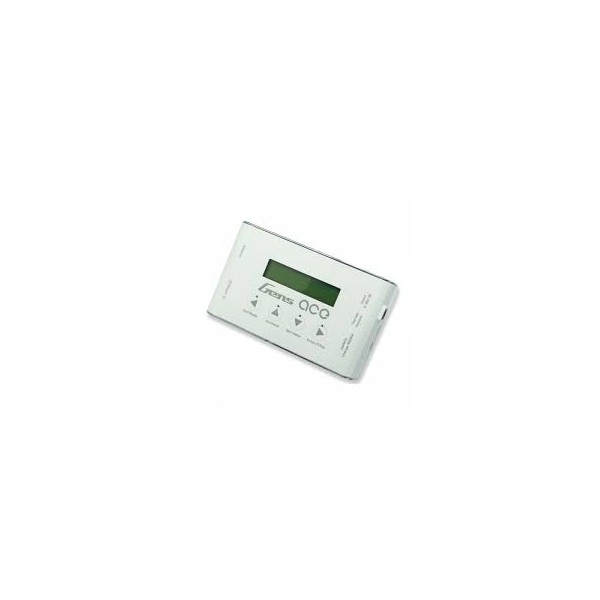

Gens Ace iMars II Portable Charger


Availability:
Ready to send: 1-2 days
Appeared on: 22/06/2020
Art. Nr: A51-iMars
Category: Chargers / Balancing


... Continue reading

45,00 €

Inc. Vat 21.00%, include Shipping
Quantity : Note

The Gens Ace iMars II portable charger is a thing of beauty. It is designed to charge and discharge NiMH, NiCd, LiPo, LiFe, and Pb batteries in the most efficient way possible. The design is based on Gens ACE's world championship winning battery technology. The Charger has a built in intelligent charge mode with features such as CC, CV, delta peak detect, restore, cycle, etc. It also has the ability to detect internal resistance of a battery and review charging or discharging data.

The iMars also features a special storage charge function to partially recharge your batteries prior to storage, which increases the batteries life span. The charger has 12 user memory profiles so that different settings for different battery packs can be stored for convenient fast charging. The charger comes pre-programmed with several memories to suit the most popular battery types. The iMars is equipped with an integrated balancer and an XH type balancing harness for 2 cell up to 6 cell batteries.

System Features:

  • Powerful all-in-one port charger, discharger and cycler system with built-in LiPo, Li-Ion/LiFe cell balancers that offer maximum safety, performance and easy to see individual cell voltages.
  • The included balance connector adapter boards allow the built-in balancers to be used with 2-6S Gens ACE compatible balance connectors as well as the JST-XH balance connectors found on many other brand batteries.
  • Convenient and flexible port design chargers, discharges, and cycles 1-6S LiPo, Li-Ion, LiFe, 1-16 cell NiCD/NiMH and 2-24V Pb batteries on each port independently or simultaneously.
  • Advanced Storage Mode function for LiPo, Li-Ion, LiFe batteries will automatically charge or discharge as needed to achieve storage level voltage.
  • 12 user-programmable memories plus built-in data logging and viewing with internal resistance measurement, battery voltage, input voltage, temperature, and more.?
  • Fully adjustable charge capacity limit, per call end voltage and low voltage cutoff settings for all chemistries to maximize safety, charge and discharge performance.

Specifications:
Input Power: 11-18V DC/10Amp at Maximum Charge Rate
Memory Profile: 12 Memories for each battery type
Charge Current: 0.2A-10A
Charge Control Type LiPo/LiFe: CC/CV
Charge NiCd/NiMH: Constant current -V delta peak charge/discharge cycles
Discharge Rate: 200mA-1Amp
Discharge Capacity: 8 Watt (Max 1A)
Capacity Display: 200-9900mAH
Timeout Limit: 10-250 Minutes (User Selectable)
Display Tolerance: 0.5%
Display Type: Backlit 2x16 dot LCD
Charge Maximum Output: 100 Watt

Supported Battery Chemistries:
LiPo/LiFe/NiMH/NiCd/Pb
LiPo/LiFe battery: 1-6 Cell
End of Voltage is adjustable
NiMH, NiCd battery: 1-16 Cell
PB: 2-24V

Input Wire: 14AWG Silicon Insulated
Size: 150x80x24mm (6x3x1in)
