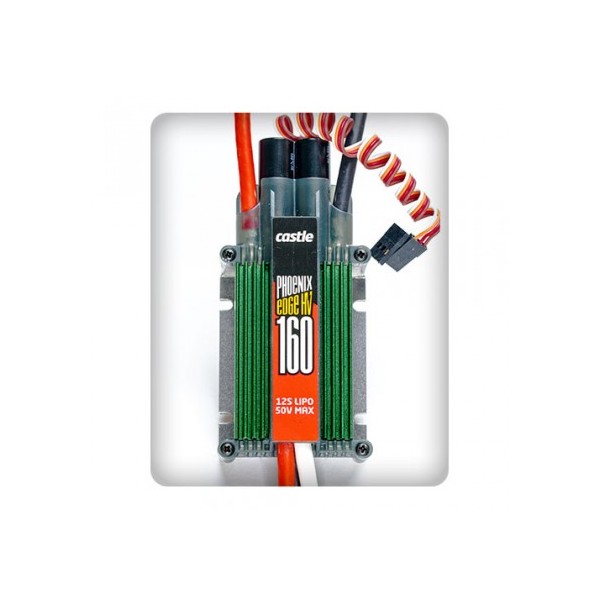

Castle Creations Phoenix Edge 160HV Brushless ESC


Availability:
Ready to send: 3-5 days
Appeared on: 14/05/2013
Art. Nr: 010-0103-00
Category: Castle Creations


... Continue reading

368,00 €

Inc. Vat 21.00%, include Shipping
Quantity : Note

Applications
Helis: 700 Class or 800 Class
Fixed wing: giant scale

Technical Specs
Input voltage: MIN: 3S LiPo MAX: 12S LiPo
Max continuous amperage at full throttle: 160 amps*

Size and Weight
Width: 2.0' (50.8mm)
Length: 4.3' (108.4mm)
Height: 1.2' (31.5mm)
Weight w/wires: 8.2 oz (232.8g)
Weight w/o wires: 5.3 oz (150.6g)



Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link USB adapter included in package) and freely downloadable Castle Link Windows software.
Castle Field Link Programming Card (sold separately) compatible for select functions.

Connectors: Battery and motor connectors sold separately

Tools needed for installation: Soldering iron and solder to attach bullets to motor wires and battery connector to power wires.

*RC HOBBY APPLICATION RATING: 160 amps for the duration of a single 10,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25C (77F) or cooler air. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and may shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC’s operating temperature.
