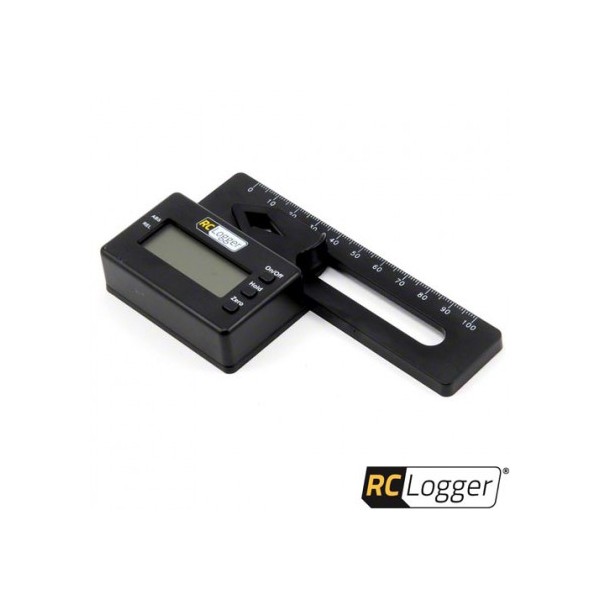

RCLogger Digital Pitch Gauge


Availability:
Ready to send: 1-2 days
Appeared on: 12/12/2013
Art. Nr: 40001RC
Category: Medidores (Grados/temp/RPM)


... Continue reading

32,98 €

Inc. Vat 21.00%, include Shipping

Notify me when available Avisar

Quantity : Note Not available!

Flybarless RC helicopters make it difficult for pilots to adjust and check the pitch set-up of helicopter main rotor blades. The new Digital Pitch Gauge from RC Logger offers simplicity, high accuracy and ultra fast pitch angle measurement. The pitch gauge is powered by two CR2032 button cells and allows blades up to 700 mm. The gauge is detachable from the mounting plate and secured via magnets.

The following items are included in the delivery:
* Digital Pitch Gauge
* Mounting Plate
* CR2032 Button Cell x 2
* Operating instructions

Features
* Digital Pitch Gauge
* Mounting Plate with Magnets
* Up to 700 mm Blades
* Fast and Accurate Measurement
* Hold Function
* Low Battery Indicator
* Calibration Function

Specification
Operating voltage: - 3.0 V/DC (CR2032 x 2)
Maximum current consumption: - 3 mA
Resolution: - 0.1 Degree
Repeatability: - 0.1 Degr ee
Operating temperature: - 0 to +40 Celsius
Dimensions (L x W x H): - 16 mm x 60 mm x 37 mm (Pitch Gauge)
Dimensions (L x W x H): - 6 mm x 120 mm x 68 mm
Weight: - 48 g
