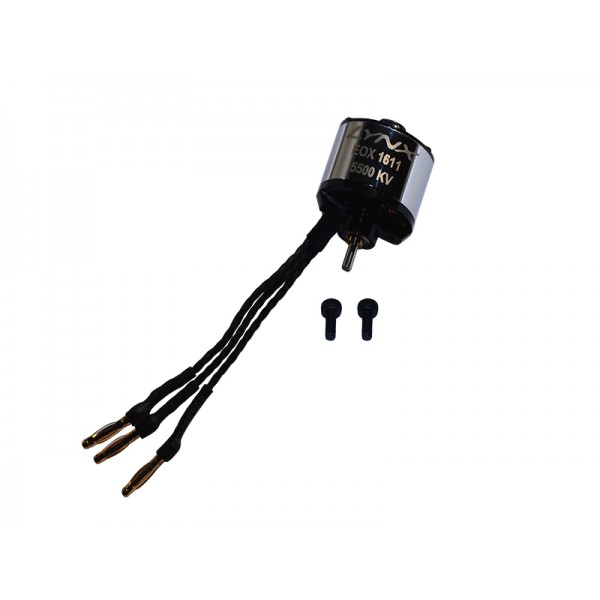

Lynx EOX 1611-5500 KV 3S Motor


Availability:
Ready to send: 1-2 days
Appeared on: 31/05/2017
Art. Nr: LX2395
Category: Motors


... Continue reading

56,99 €

Inc. Vat 21.00%, include Shipping

Notify me when available Avisar

Quantity : Note Not available!

EOX-1611 developed by Lynx, this motors is perhaps the ultimate Oxy2 helicopter motor upgrade.

Featuring a parallel 0.5mm diameter wiring coil, manually assembly for the best efficiency, power and cool running.

High temperature rating Neodymium magnet and high quality material and component graduate EOX motor by Lynx a Limit Edition.

The EOX-1611 is the biggest motor that can fit on standard Oxy2, designed specifically for the Oxy2 with 5500KV and three Radial Bearing that support the shaft.

Special Motor Support was necessary, and the EOX-1611 come preassembled ready to be installed on Oxy2.

Designed in order to provide the maximum power when with 3S battery pack.

NOTE: EOX-1611 can also run with 4S (only with Governor Management )

Overall dimension was designed to fit in the standard frame without any modification.

So the next time you want to upgrade your helicopter – think Lynx EOX!

Specification
Motor Kv - 5500KV
Max Lipo Cell - 3s or 4s (4s only with GOV)
Max Continuous Current - 30A
Max Continuous Power - 390W
Stator Diameter - 16mm
Stator Length - 11mm
No. of Stator Arms - 9
No. Magnet Poles - 6
Parallel Wire Diam - 0.5 mm
Weight - 23.6g - Outside Diameter - 20.5mm
Body Length - 18.5mm
Shaft Diameter and Support - Inner 3mm / Pinion 2 mm (Triple Bearing)
Overall Shaft Length - 29.8mm
Motor Timing - 5deg
Drive Frequency - 8kHz
