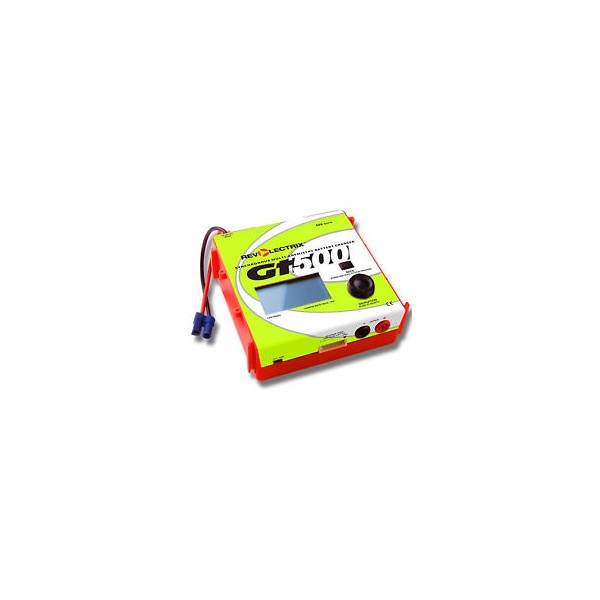

Revolectrix GT500 500W Balance Charger


Availability:
Ready to send: 1-2 days
Appeared on: 19/01/2016
Art. Nr: OPRGT500
Category: Optipower


... Continue reading

189,00 €

Inc. Vat 21.00%, include Shipping
Quantity : Note

Welcome to GT500, the first offering in the amazing NEW GT SERIES of R/C Battery Chargers from Revolectrix. Built on time-proven, reliable PowerLab hardware, this new 500W, 1s-8s Charger provides a fresh approach to a more traditional user interface than the PowerLab series at an affordable price. Simplicity is the core thrust of the new user interface, boasting a larger, backlit dot-matrix LCD, allowing access to virtually every relevant parameter required to the routine charging, discharging, monitoring, and cycling of any battery chemistry available while at the same time providing easy-to-read feedback of key information during every operation; bigger screen, more information, easier to read. Adding to the intuitive feel, the new navigation wheel makes for quicker access to various menu options, and includes a SELECT/ENTER button. A separate BACK button rounds out the interface to allow the user to "back out" of menus and return to previous screens.

The Cellpro GT500 Charger directly supports balance charge of any 1s-8s LiPo or LiHV battery pack equipped with a JST XH balance connector without the use of an adapter. It also directly supports the Revolectrix MPA and SPA Smart Parallel Adapters; the safest parallel charging solutions on the market. Look for the MPA Combo in the REVO webstores.

Specification
- For Battery types: Lithium Polymer HV (1s to 8s balanced, 1s to 2s unbalanced), Lithium Polymer (1s to 8s balanced, 1s to 2s unbalanced) Lithium Ion (1s to 8s balanced, 1s to 2s unbalanced), Lithium Manganese (1s to 8s balanced, 1s to 2s unbalanced), A123 (LiFePO4) (1s to 8s balanced, 1s to 8s unbalanced), NiCd (1s to 21s), NiMH (1s to 21s), Lead Acid batteries (1s-12s Flooded, Gel, AGM, SLA)
- Pack capacity: 50 mAh to 360Ah
- Input voltage: 10-32VDC, reverse polarity protected
- Input current: 1A to 25A, software limited
- Power conversion: Synchronous DC/DC converter, 85% to 93% efficiency depending on output current
- Output battery charge current: Adjustable range 25mA to 20A, limited by 25A input current*
- Output battery discharge current: Internal discharge 25mA to 8A, 50W max Regenerative discharge 25mA to 20A, 500W max**
- Continuous max output power: 250W @ +12VDC input, 500W @ +24VDC
- Cell balancing: 1s-8s Li or A123 (LiFePO4) balanced charging
- Voltage calibration: Cell voltage measurements are factory calibrated to a standard traceable to NIST; calibration is to +/- 6 mV
- Current calibration: Charge current is factory calibrated on a 4A standard; calibration is to +/- 1mA
- Measurement accuracy:
Voltage resolution: 78uV (16 bit)
Voltage tolerance: +/- 6mV
Charge current: +/- 1%
Capacity added to pack: +/- 1%
Percent capacity (“Fuel”): +/- 5% (with accurate fuel table defined for battery being charged)
- Interface: USB 2.0 Full Speed (12Mb/s)
- Cooling fans: Single, 13 CFM, 50mm diameter
- Heat sink: Internal 120W aluminum, thin finned
- Output battery connector: Modified JST XH series, 9 position max; accepts 1s-8s balance plugs on batteries
- LCD: 2.6", 128 x 64 pixels graphic LCD with white LED backlight
- Size: 5.70" x 5.57" x 3.40"

Footnotes:

* Please note, for safety reasons, available charger current may be limited for certain battery types and/or charging modes, e.g., non-balanced charge of Li

** Please check bullet number 9 in the section titled “Major Features” (Features tab) for a detailed description of Regenerative Discharge
