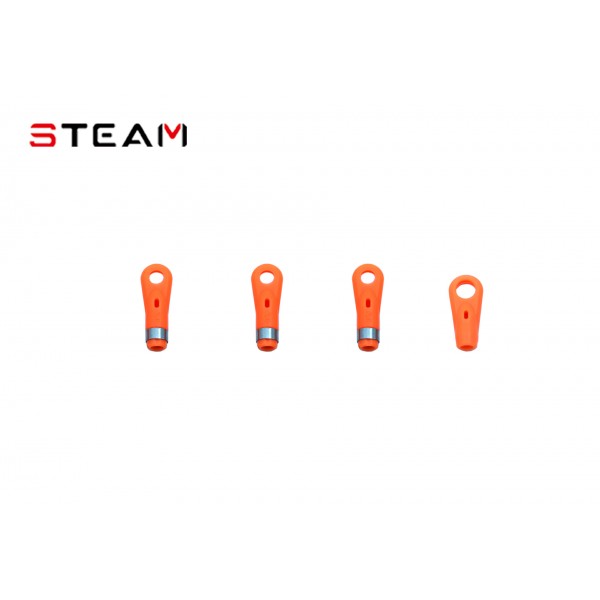

700 Swashplate Ball Link

Description：

       700 Swashplate Ball Link is suitable for class 700 helicopter modified and upgraded. Install thread rod φ 3.0mm, design thread depth observation hole. With stainless steel anti-cracking circle design. To meet the personalized requirements, the structure design meets the strict flight bearing requirements, effectively improve the flight stability.

Attention：One of them is φ 5.8mm large specification ball link. Design to prevent swashplate and linkage rod interference。

Caution:

1.Thread rod installed, effect depth should be greater than 2 times the diameter.

2.Linkage ball and ball link need to be installed with zero tolerance. And confirm it can turn smoothly. Can use reamer or WD40 lubricant.

Related Product Number：

700 Metal Swashplate          H7011

700 Swashplate Outer           H7107

700 Swashplate Inner           H7108

700 Main Rotor Linkage Rod    H7007

700 Servo Linkage Rod       H7008

700 Swashplate Ball Link   H7109H

700 Ball Link            H7110H

700 Ball Link             H7110C

Specification：

M3×Φ5.0mm Ball Link×3 (M3×Φ5×Φ6×24mm)

Φ5.5 Stainless Steel Anti-cracking Circle×3

M3×Φ5.8mm Ball Link×1 (M3×Φ5.8×Φ6×18mm)
