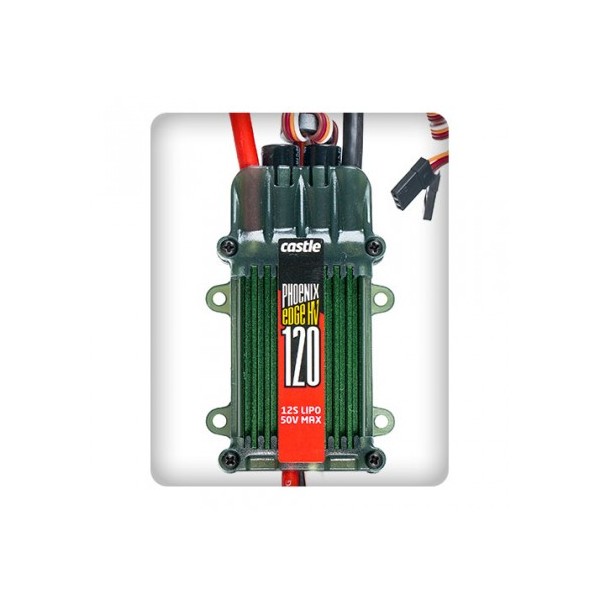

Castle Creations Phoenix Edge 120HV Brushless ESC

The auxiliary advantage.

With the debut of the Phoenix Edge series of ESCs the next evolution in speed controller technology has arrived. The Edge series introduces a user programmable auxiliary wire capable of functions modelers have only dreamed of, until now. The white auxiliary wire can be used for helicopter governor gain input adjustments mid-flight, serve as an audible beacon after an “unexpected landing”, act as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included) or as a receiver arming lock. Combined with the data logging capability the Edge series of controllers offer, users can enjoy unparalleled versatility.

Castle Creations Phoenix Edge 120HV

Applications Heli/Airplanes
Special Features Multifunction Auxiliary Interface
Cont/Max Amp 120/132A
Cells NiMH/NiCD 8-36 cells
Cells Li-poly 3-12 cells
Voltage 9-36V
Programming Fully Programmable

Dimensions 83mm x 51mm x 23mm
Weight 149g
