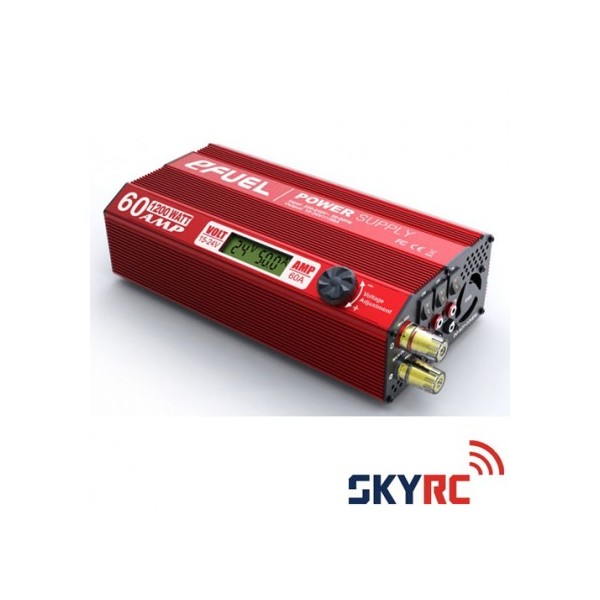

SkyRC EFuel 60A 24V 1200W Power Supply

The eFUEL switching DC Power Supply is designed to use household AC power source to power equipments that required DC power. The eFUEL converts standard household power 100-120V AC or 200-240V AC to 15-24V DC power and can supply up to 60 amperes of continuous power. The maximum output current is regulated by the output power of this power supply and does not exceed 60 Ampere. Maximum Current = 1200W divide by output voltage. ( eg. DC20V output, maximum current = 1200W / 20V = 60A; DC24V output, maximum current = 1200W / 24V = 50A.)

Features
* One main DC power outputs, up to 60 amperes, three output channels with ON/OFF switch.
* Output voltage adjustable 15-24V
* Large LCD indicates voltage and current amperes output
* Smart cooling fan
* Over temperature protection
* Over loading protection
* Short circuit protection

Specification
Total Output Power ..........................1200Watts
Voltage……………………..…......................200V-240V AC (,PSU 60ADU)
Input AC Frequency …………………….………50Hz/60Hz
Output Voltage……………………………….……..15-24V DC±1V
Output Current……………………………………….60A±3A @ 20V DC
Output Current……………………………......... 50A±3A @ 24V DC
Current Overload Protection ………….......≤63A
Input Fuse …………………….......................200V-240V AC 15A Fuse
Output Voltage Ripple ………………………….<200MV
Power Efficiency………………………………….…>85%
Power Factor……………………………………….…>0.7
Over Temperature Protection ….…………..<65℃
Cooling Method …………………………...........Cooling Fan
Operating Temperature …………………………0-40℃
Operating Humidity ……………………………….0-90%
Dimensions (L*W*H) …………………………....305x140x78mm
Net weight ……………………………..………….....2.52kg
