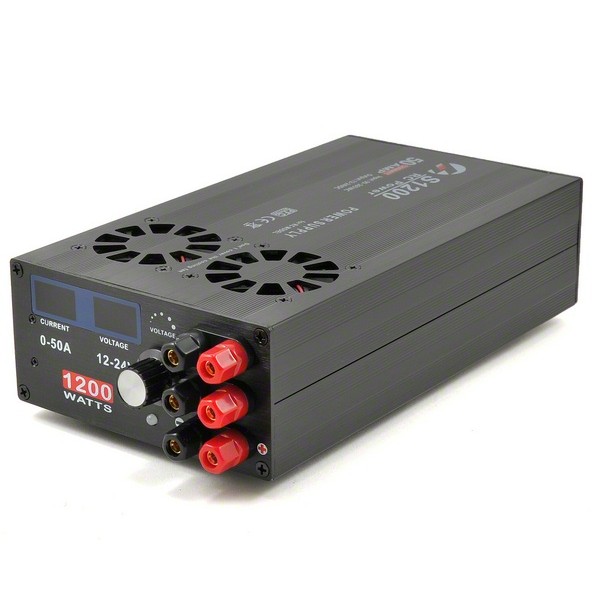

iCharger 1200W 12-24V 50A DC Power Supply
- » Imprimir
- » Pregunta
- » Ampliar
Cantidad: | No disponible!! |
Features
- Acive PFC, AC 90-265V worldwide use
- Programming output voltage from 11.5 to 24.5V
- Digital display output voltage and current on time
- 3 outputs can do more chargers simultaneously
- 3 Intelligent cooling fans controlled by temperature
- Over current ,over voltage,over load,over temperature and short circuit protection
- 24 months warranty
Application
The Powerful digital programming power supply can be applied to any device with DC in 12-24V, It is designed specially for high power chargers and balancer chargers.
Specifications
Input Voltage Range 90-265VAC
Output Voltage Range 11.5-24.5VDC
Input Frequency 50/60Hz
Output Current 0-50A(Max.55A)
Power 1200W
Forced Air Cooling By Built-In DC Fan
Dimension(L X W X H) 286 X 145 X 68mm
Weight 2.3Kg without input cable
Warnings
- Never leave the adapter unattended when it is connected to charger. If any malfunction is observed immediately terminated charging and refer to the operation instructions.
- Keep away the unit from dust, damp, rain, heat direct sunshine and vibration. Do not drop it.
- Then adapter and the charger to be charged should be set up on a head-resistant, non-inflammable and non-conductive surface. Never place them on a car seat, carpet or similar.
- Keep all the inflammable volatile materials well away from operating area.
- Do not attempt to charge any types of battery including below: Lead acid battery or VRLA, NIMH/NICD battery pack, Li-ion, LiPo or LiFe battery
Warranty
S1200 is guaranteed to be free from defects in material and workmanship for a period of two calendar years from date of purchase. Your selling dealer is your first point of contact for warranty issues. Return postage costs are the responsibility of the users in all cases. Submit copy of original receipt with the return.
This warranty does NOT cover the damage due to wear, overloading, physical shock (dropping on the floor, etc), incompetent handling or using incorrect accessories.
