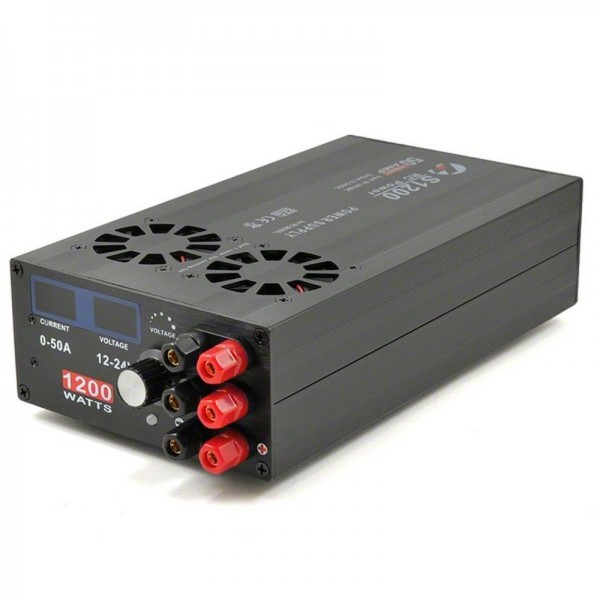

Chargery S1200 Adjustable 1200W 24 Volt 50A Power Supply

The S1200 is a high efficiency power supply which is small and compact. Having a active PFC making a lower input current designed to save energy and increase reliability.

The S1200 can output 1200W even more at 90V AC, and get a converting efficiency of 86.85% at full load.

Features
- Digital display output voltage and current on time.
- Over current, over voltage, over load and over temperature protection. Resume automatically when troubleshooting.
- Short-circuit protection on output, safer and more reliable.
- 3 Intelligent cooling fans turned on at over 50℃
- 3 outputs can do more chargers simultaneously.
- High power density: 521W/Kg
- Approved by CE

Input/Output Specifications
- Input Voltage: AC 110V/220V, 50/60Hz
- Range Voltage: AC 90-265V, 47~63Hz
- Max Current ： 15A @90VAC, 6.0A @ 220VAC
- Efficiency: 94% at 60% load and 220V.
- Active PFC: PF>0.99 at 90VAC, 100% of load
- Output Power: 1200W MAX.
- Output Voltage: 11.5V~24.5V adjustable
- Output Current: 0~50A(55A MAX.)

General Specifications
- Operating Temperature: 0~50℃
- Storage Temperature: -20~85℃
- Operating Relative Humidity: 5~95%RH
- Withstanding Voltage: AC 2000V(Min),5mA(Max)
- Insulation Resistance: DC 500V 100MΩ(Min)

Mechanical Characteristics
- Dimension: 286*145*68 (mm, L*W*H) or 10.0*5.7*2.7 (inch)
- AC Plug: Customized according to your demand
- Case Material : AL alloy
- DC output : three pairs 4mm gold banana jack
- Net weight: 2.3Kg without input cable.
