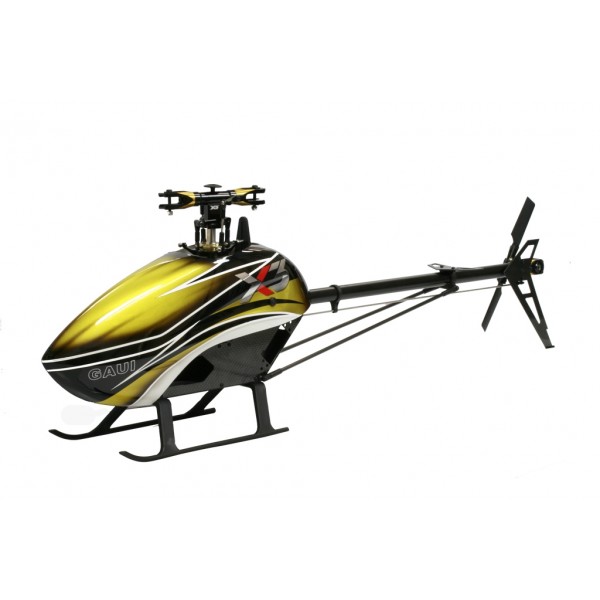

Gaui X3 Limited Edition Gold Kit


Disponibilidad:
Listo para enviar: 1 a 2 días laborales
Aparecido el: 03/04/2014
Art. Nr: 216013
Categoría GAUI


... Seguir leyendo

321,00 €

Inc. 21.00% IVA., incluir Envío

Indicarme cuando esté disponible Avisar

Cantidad: Nota No disponible!!

Specifications:
*Height: 230mm
*Width: 190mm
*Tail blade length: 62mm
*Overall Length (with Canopy): 690 mm
*Main blade length: 315 ~ 360 mm
*Weight: 532g (basic heli kit weight)
*Main rotation diameter: 738 ~ 808mm
 (with 315~360mm main blades)
*Tail rotation diameter: 164mm
*Flight time: 3~4 minutes (3D flight 3S 2100mAh or 6S 1100mAh)
*LiPo Battery size: 110 x 34 x 34mm (3S & 6S)
*Motor Drive Gear: 9T~13T
*Main Drive Gear: 131T
*Autorotation Tail Drive Gear: 61T
*Tail Drive Gear: 14T

Drive Gear Ratio
*9T ( 14.55 : 1 : 4.69 )
*10T ( 13.10 : 1 : 4.69 )
*11T ( 11.90 : 1 : 4.69 )
*12T ( 10.91 : 1 : 4.69 )
*13T ( 10.07 : 1 : 4.69 )

Recommended accessories for this item:
216702- X3 CF main blades (360L-CFA)
901045- 12T Steel Pinion Gear(for 3.5mm shaft)
901046- 13T Steel Pinion Gear(for 3.5mm shaft)
216148- X3 Brace Set (White)
923503- GE-502 50A ESC (SBEC)
922101- GUEC GS-311 Metal Gear Digital Servo
922518- GUED GS-518 Coreless metal gear Mini Servo
924364- GUEC GU-364 GAUI Mini VBar
944002- Digital Pitch Gauge


Required for operation
*Transmitter(6-channel or more, helicopter system)
*Receiver(6-channel or more)
*LiPo Battery size: 110 x 34 x 34mm (3S & 6S)
*ESC: 40A+ ESC recommended
Tools and Equipment for Assembly
*1.5 mm Hexagon Screw Driver
*2 mm Hexagon Screw Driver
*2.5 mm Hexagon Screw Driver
* Philips Screw Driver
* Lubricant / one-way bearing grease
*Spring calipers, Needle-nosed pliers
* General thread lock
