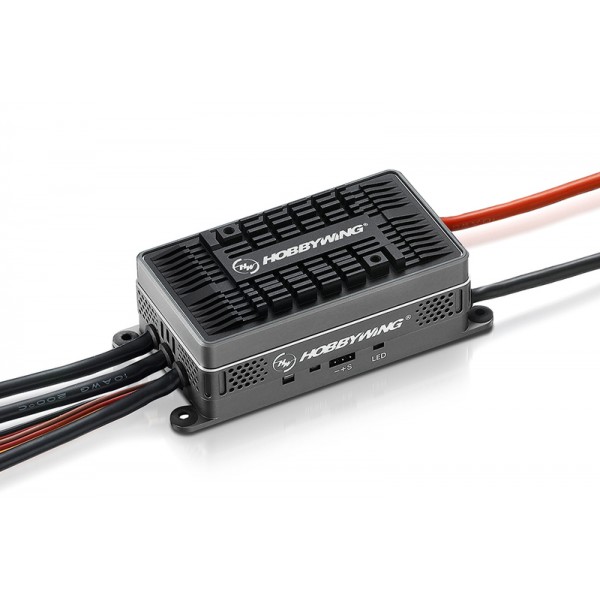

Hobbywing RCE-BL160A Brushless ESC

The elegant cases are made by Aluminum. Each cooling slot and its fin were carefully designed and arranged, and the case has gone through oxidation, coloring and edge-highlighting.
The innovative "duo" stacking structure allows all components on both sides of the printed circuit boards to quickly conduct heat to the aluminum case.
High-performance 32-bit processor combined with advanced algorithm makes the motor speed-governing excellent for different conditions. With the adjustable sensitivity of speed-governing, every pilot can find the most suitable settings for his helicopter.
Platinum-HV-160A makes the motor start extremely soft and avoids tail-drift issues of helicopter.The start-up time is adjustable within 8 to 25 seconds, this will definitely create a perfect starting point for every flight.
The built-in switch mode BEC with a continuously adjustable output voltage, range from 5V to 8V(step: 0.1V). It is certain to put out the power you need for rapid, precise steering servo operation.
A high quality, and high voltage MOSFET with a great current endurance guarantees the ESC’s safety especially in a extremely high power demanding situation.
Built-in sparkproof circuit effectively eliminates sparks produced at the “powering-on” moment and prolongs the connectors‘ lifespan.
Support ASBOX multifunction programmer set up.
Innovative Heat Dissipation Structure:The innovative "duo" stacking structure allows all components on both sides of the printed circuit boards to quickly conduct heat to the aluminum case.

Use for T-REX 700X/700L/700E/800E.

Specification
Supporting input voltage: 6~14S Lipo / 22.2V~51.8V
Continuous current: 160A
Surge current: 200A
BEC output voltage: 5~8V
BEC output current: Continuous 10A / Surge 25A
Size: 106x50x34mm
Weight: 282g

Accessories:
160A Brushless ESC x 1
160A Brushless ESC fan x 1
Socket button head screw(M3x14mm) x 2
