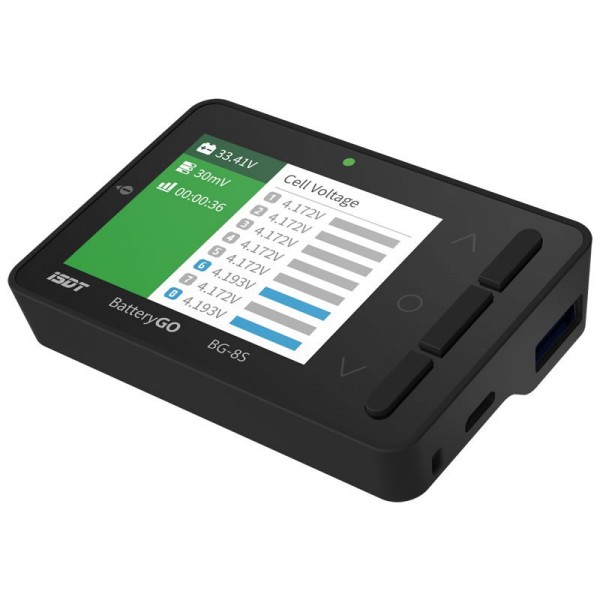

iSDT SMART Battery Checker BG-8S - support BattGO

Smart Battery Checker with a 260,000 color display visible under strong sunlight.
Easy to read cells voltage, battery cycles, working parameters and fast set to your preferred settings.

• Advanced auto balancing algorithm, make sure every cell is well balanced. After completion auto into low power mode
• Connecting to your battery, BG-8S can become your power bank for mobile devices. Support QC 2.0/3.0, compatible with BC1.2 and other devices. Maximum output 12V/2A
• Receiver signal test and protocol analysis - With standard 3 pin plug, BG-8S can detect BEC output voltage - BG-8S also supports multiple protocol analysis including PWM, PPM and SBUS
• With future firmware upgrades more Protocol analysis will be supported.
• Support XT60/XT60i, XH2.54 1-8S balance lead, XH 2.54 3pin, JST ETC to measure voltage
• Support LiHv, LiPo, Lilon, LiFe, NiMh/Cd battery and BEC output measurements
• Support USB upgrade, multi language options - BG-8S has Micro USB port, More language options are coming soon
• XT60i meant for BattGO - BG-8S uses XT60i connector which was jointly developed by ISDT and Amass, support BattGO technology, and highly compatible with original XT60 plugs
• Fully support BattGO technology
• Cooperating with BattGO technology, only with XT60i connected and you can get full knowledge on detail parameters on your battery.

Read more on BattGO.


Specifications:

Working voltage:  5.0V-36V
Input voltage 1s:  0.8V-15V
Input voltage 2-8S:  0.8V-4.8V
Battery cells:  1-8S
Voltage measurement accuracy:  ±0.005V @ 4.2V
Balancing cells accuracy:  < 0.005V
Balancing current: 50 mA
Support USB charging:  QC 2.0 / 3.0, BC1.2, Maximum output 12V/2A
Support smart battery:  Charging and discharging setting, read battery info and usage history.
Supported Batt. Type:  LiHv (1-8S) / LiPo (1-8S) / LiFe(1-8S), Lilon (1-8S) / NiMH/Cd(1-10S)
Display:  2.4" 320×240 260,000 color IPS LCD
Dimension:  80*55*19 mm
Weight:  59g
Operating Temperature:  0-40°C
Working Humidity:  10%-90%RH (noncondensing)
