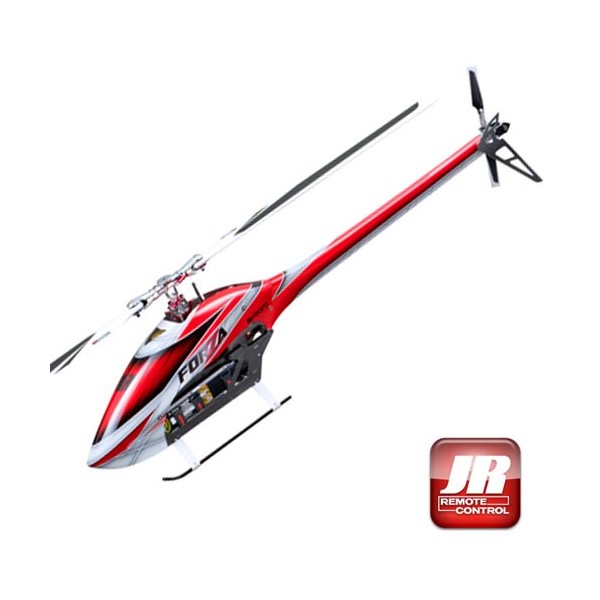

JR Forza 700 Kit

The JR FORZA 700 will let you enjoy extreme 3D flight to the Max!
Tough, lightweight frames not only offer great rigidity for 12 cell power systems, but are also maintenance friendly. You can fly the FORZA with the included rear body, or in a standard pod and boom configuration.

Low profile frame design. - Positions the center of gravity close to the rotor head, increasing cyclic response.
Modular frame design. - The upper frame holds the drive train, and the lower frame protects the batteries in the event of a crash.
Helical main and tail gears reduce gear noise and improve smoothness.

All components are positioned around the main shaft, and the servos have short, direct linkages to the swash plate. The rotor head spindle is 10mm, and the main shaft 12mm.

The battery is easily removed on a one-touch slide tray which mounts on aluminum rails. There is space for most battery configurations, and the batteries can be positioned for a perfect center of gravity.

The rear body faring supports the tail boom and ensures no boom flex. Because of the shaft drive tail, the rear body faring is easily removed.

You can choose to fly with rear body faring, or in a standard pod and boom configuration.

The tail output shaft is 6mm diameter and the pitch control lever is simple and durable. The tail case has removable side plates for easy maintenance.

Specification
●Overall length: 1332mm
●Overall height: 356mm
●Overall width: 210mm
●Main rotor diameter: 1559mm (with 710mm main rotor blades)
●Tail rotor diameter: 288mm (with 105mm tail rotor blades)
●Gear ratio
●T11: 10.2:1:4.72
●T12: 9.3:1:4.72
●Shaft drive
●120 CCPM flybarless
