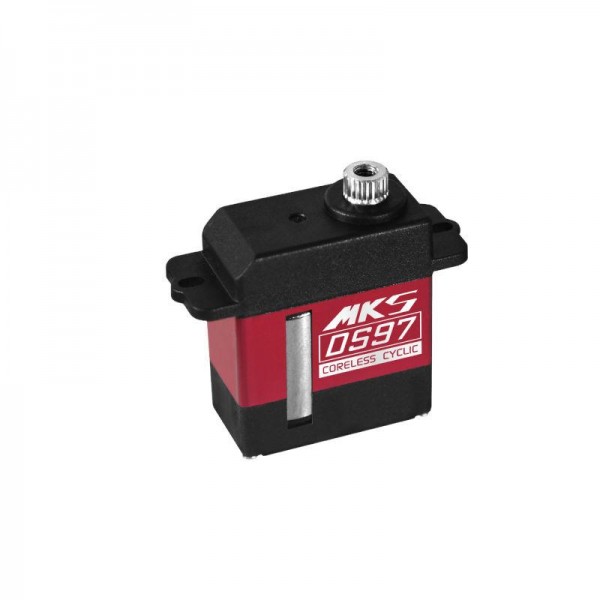

DS97 Digital Servo

The DS 97 is the upgrade of the DS92A+ with much better torque. It is possible by the a new stronger motor.

Servo Specification:
Torque (kg-cm)  3.8 (4.8V) / 4.3 (6.0V)
Torque (oz-in)  52.77 (4.8V) / 59.71 (6.0V)
Speed  0.070 s (4.8V) / 0.058 s (6.0V)
Stall Current (at locked load)  2.9A (4.8V) / 3.6A (6.0V)
Working Voltage  4.8V ~ 7.0V DC Volt
Working Frequency  1520μs / 333Hz
Dead Band  0.001 ms (Default)
Bearing  2* Ball Bearing
Gear  Metal Alloy Gear
Motor  Coreless Motor
Weight:  17.73 g  (0.62 oz)
Dimension: 23 x 12 x 27.25 mm
