Perfect Regulators Safe Switch DUO


Disponibilidad:
Listo para enviar: 1 a 2 días laborales
Aparecido el: 13/12/2010
Art. Nr: prr-rmtsw5v
Categoría Perfect Regulators


... Seguir leyendo

45,00 €

Inc. 21.00% IVA., incluir Envío
Cantidad: Nota

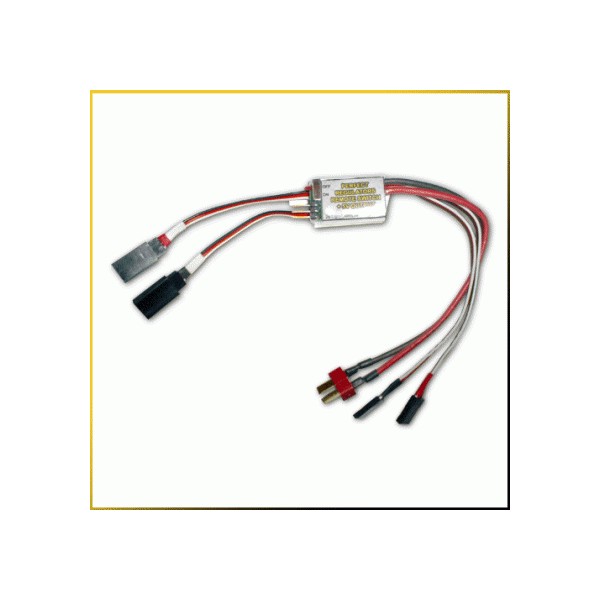

This is our new Remote Swtich with a built in 5v regulator for 2 channels. Designed for use with a 6.6v A123/Life and 2s 7.4v Lipo Batteries, this unit will direct all Battery power to the Rx via 2 Universal Servo Leads. Typically these would also be the same 2 channels that you want to run at 5v (ie... Throttle and Rudder). Then simply connect those 2 channels into the 2 Female Universal Servo Leads for a Regulated 5v Output.

A bright red led mounted on the unit will give visual verification of power status.

You can use the Remote Switch feature several different ways.  Use the actuator on the side of the board to turn the unit on and off, turn the switch to the on position and use your Spektrum Bind-Plug on the pins.  With the plug inserted on the pins, the unit is off, pull the Plug off and the unit turns on.  Have an old "Pin Flag" setup?  Simply replace the female lead to a male lead and it too can be used to turn the unit on and off.

Our Remote Switch is a "fail-safe" design that fails in the on position.  Unit comes wrapped in clear pvc heatshrink and double-sided tape on the rear.





Suggested Input Voltage: 2s - 7.4v / A123/Life-6.6v
Current Capacity: 20A
Regulated 5v Current Capacity:3A
Length of Lead Plugs: 6"
Length of Female Lead Plugs:4"
Plug Type: Deans Compatible / Universal
Size: 32mm x 18mm x 11mm
Weight:25g



* not intended for use between flight packs and esc's on electric aircraft

* do not leave battery connected to switch for long periods of no-use.
