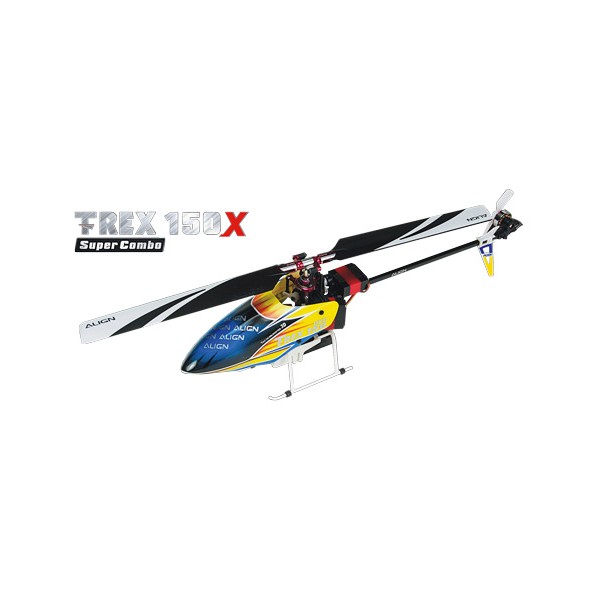

Align T-REX 150X DFC Super Combo - BTF

• Brand new 150 GRS Flight Controller Unit. Set up and update the flight parameter settings via APP Interface.
• 6-axis Gyro - 3-axis gyroscope + 3-axis accelerometer using a superior ARM Cortex-M4 32-bits processor.
• Attitude Auto-level Mode & Rescue Mode.
• Brand new DFCS (Direct Flight Control System) Controller allows to control real time flight.
• BL Heli ESC allows faster motor feedback and precise flying performance.
• Integrates main motor & tail motor in a dual system output. Also it adopts a high-speed and powerful micro MCU processor, which features low-voltage, low-temperature, and lost and found protection.
• Built-in Receiver: Futaba S-FHSS 2.4GHz System.
• Compatible with Spektrum DSM2/DSMX, JR DSM2/DMSS satellite.
• Rigidity Main Frame.
• Fully metal CNC CCPM Swashplate.
• New tail motor plug mount makes maintenance easy.

Specifications

Length: 255mm
Height: 80mm
Main Blade Length: 120mm
Main Rotor Diameter: 271mm
Tail Rotor Diameter: 45mm
Motor Pinion Gear: 10T
Main Drive Gear: 78T
Weight (w/o Battery): 53g

Content

• 1x T-REX 150X DFC
• 4x Main Blade
• 2x Tail Blade
• 1x 150M Main Motor
• 1x 150M Tail Motor
• 1x DS155 Digital Servo
• 2x DS150 Digital Servo
• 1x Bind Plug text by fw
• 1x Remote Extension
• 2x 7.4V Li-Po 250mAh Li-Polymer Battery
• 1x 150 Carry Box-Black (292x160x69mm)
• 2x 1.3mm Hexagon screw driver (Blue/8.2g)
• 1x 0.9mm Hexagon screw driver (Red/8g)
• 1x Parts box E (78.5x60.9x21mm)
• 1x Parts box A (52x40x12mm)
• 1x CH150 Li-Po Charger

Required for assembly

• 1x ALIGN T6 or Futaba S-FHSS 2.4G Transmitter or 1x JR DSM2/DSMJ/DMSS / Spektrum DSM2 2.4GHz Transmitter
