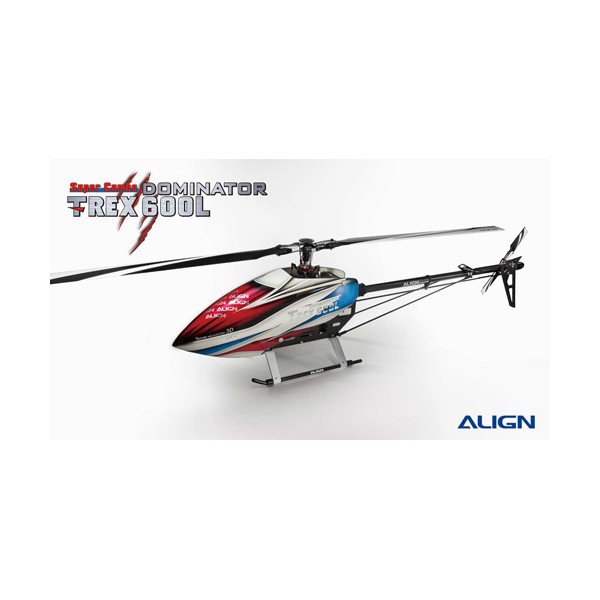

T-Rex 600L Dominator Super Combo

Equipped with Align′s new generation GPro flybarless system, featuring CPU capable of 20 times faster processing power, along with brand new firmware, and performance improving compensation routines; Allowing Gpro to provide faster and more precise response, reaching the pinnacle of helicopter performance.
GPro features ergonomically adjustability through PC, as well as iOS and Android smartphone apps.

Powered by 750MX/530KV motor engraved with DOMINATOR insignia, providing extraordinary power output.
The latest BL815H and BL855H metallic brushless servos are standard equipment, featuring superior torque, speed with unparalleled efficiency and precision.
These servos are highly appraised by team pilots for their low operation heat, contributing to dramatically increased longevity.

Align′s 2014 flagship T-Rex 600L Dominator, incorporates all the top grade upgrades, and the new generation GPro flybarless system, with stability and power exceeding all past expectations.
The superior control feel, and attractive look, the T-Rex 600L Dominator is the top choice for any enthusiasts!

Features

• Equipped with Align′s new generation GPro flybarless system, featuring CPU capable of 20 times faster processing power, along with brand new firmware, and performance improving compensation routines; Allowing Gpro to provide faster and more precise response, reaching the pinnacle of helicopter performance. GPro features ergonomically adjustability through PC, as well as iOS and Android smartphone apps.
• Top mounted motor base bringing the motor′s center of gravity closer to rotating disc, improving 3D agility. Equipped with the low CG DFC rotor head, effectively reduce wind resistance during flight, providing the most direct and precise control feel back to the pilot, and exhibits exhilarating 3D performance and unimaginable flight speed. The brand new spindle shaft design features enlarged diameter from 6mm to 8mm, with oversized M5x10mm spindle screws to increase the rigidity of the overall rotor head.
• Brand new 600E PRO Performance Booster designed specifically to bump up the power output of T-Rex 600E PRO by 30% by upgrading the motor from 600MX motor (3300w/5500w) to 750MX/530KV motor (4400w/7260w). The feel as if a turbo charger was added to the helicopter, with dramatic increase of motor torque output, and near bulletproof governing speed of the rotor, while maintaining power consistency throughout the entire flight duration.
• Top mounted motor base and imbedded servo mounts. The latest BL815H and BL855H metallic brushless servos are standard equipment, featuring superior torque, speed with unparalleled efficiency and precision. These servos are highly appraised by team pilots for their low operation heat, contributing to dramatically increased longevity.
• New lightweight H-cross section for electronic equipments.
• Sliding battery tray rails imbedded into 3K Side frame.
• Equipped with new high strength CNC M1/118T helical main gear and tail drive bevel gear assembly, featuring reinforced overall gear structure and increased gear thickness, effectively improves gear′s anti torsion ability to prevent gear from deforming under extreme power, reducing gear wear and power loss.
• CNC machined aluminum pieces including servo mount.
• New tail control assembly with dual mounting points, effectively eliminate slop and improve control precision and feel. Utilizes newly developed, highest spec and superior anti-wear material to increase the overall strength and durability for torque tube drive gear. Effectively minimize gear striping and crash damage.

Specifications

• Length: 1160mm
• Height: 319mm
• Width: 210mm
• Main Blade Length: 600mm
• Main Rotor Diameter: 1347mm
• Tail Rotor Diameter: 260mm
• Motor Drive Gear: 14T
• Main Drive Gear: 118T
• Autorotation Tail Drive Gear: 131T
• Tail Drive Gear: 34T
• Drive Gear Ratio: 1:8.42:3.85
• Weight(With Motor): 2900g

Content

• 1x T-REX 600L DOMINATOR Set
• 2x 600 Carbon Fiber Blade
• 2x 95 Carbon Fiber Tail Blade
• 1x 750MX Brushless Motor (530KV)
• 3x BL815H High Voltage Brushless Servo
• 1x BL855H High Voltage Brushless Servo
• 1x Castle EDGE HV 80 Brushless ESC
• 1x 6A External BEC w/ 5.1V Two-way Step-down
• 1x Gpro Flybarless System

Radio transmitter and electronic equipment required for assembly

• 1x Transmitter (7-channel or more, helicopter system)
• 1x Receiver (7-channel or more)
• 2x Flight Battery 6S Li-Po 2600 ~ 4600mAh (3300mAh suggestion)
• 1x BEC Battery 2S Li-Po 1900 ~ 2300mAh
• 1x Digital Pitch Gauge/Dial Pitch Gauge
• 1x LiPo Charger
