T-REX TB70 Top Combo

Specification
• Length: 1356mm
• Height: 358mm
• Width: 187mm
• Main Blade Length: 650-730mm
• Main Rotor Diameter: 1542mm
• Tail Length: 105-115mm
• Tail Rotor Diameter: 279mm
• Motor Belt Pulley: 22T
• Belt Pulley: 50T
• Front Drive Main Shaft: 15T
• Main Drive Gear: 62T
• Autorotation Tail Drive Gear: 27T
• Tail Drive Gear: 23T
• Drive Gear Ratio: 9.38:1:4.83
• Max RPM(approx.): 2400RPM
• Flying Weight(With Battery): Approx. 5kg (ALIGN 12S 5200mAh)

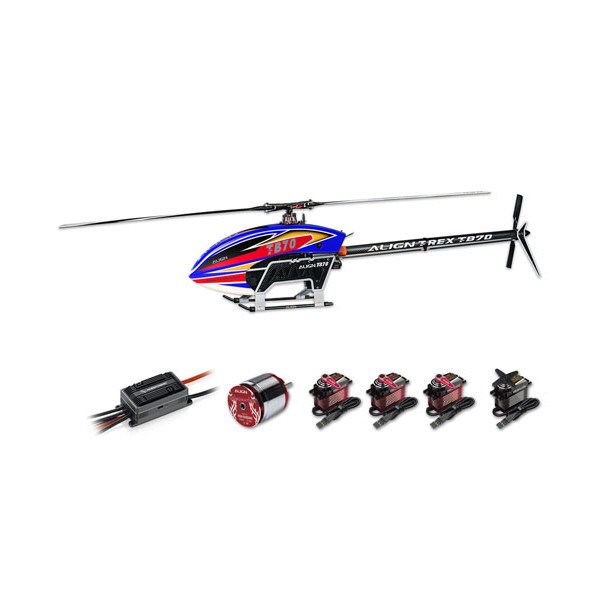

Content

• 1x TB70 Kit Set Set
• 1x 700 Carbon Fiber Blades Set
• 1x 105 Carbon Fiber Tail Blades Set
• 1x 850MX Brushless Motor(540KV/4535)
• 3x DS820M High Voltage Brushless Servo
• 1x DS825M High Voltage Brushless Servo
• 1x Platinum HV 200A V4 Brushless ESC

Required for assembly

• Transmitter(6-channel or more, helicopter system)
• Receiver(6-channel or more)
• RCC-6CX Intelligent Balance Charger
• 2x 22.2V 6S 4000~4800mAh Li-Po Battery
• Digital Pitch Gauge
• Multi-function Tester
• Flybarless System
