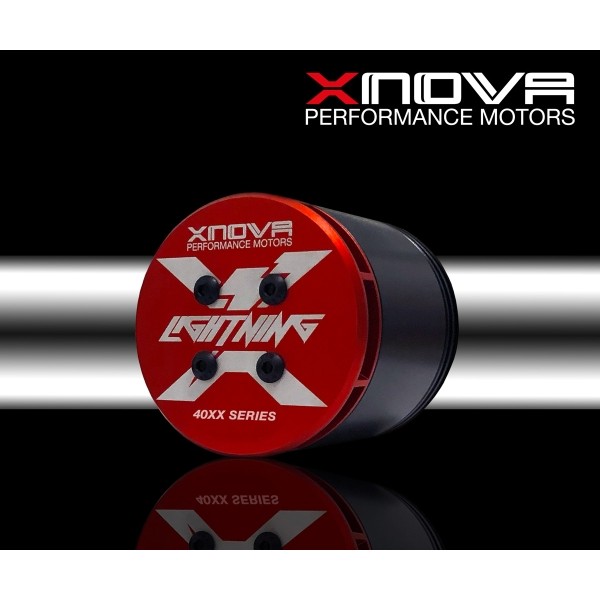

Xnova 4020 Lightning 900kv

This motor was specially developed for the new RAW 500 in cooperation with SAB team pilots.
It will be supplied with shaft B (6 mm D / 22 mm length, suitable for the RAW 500).
A conversion to other shaft types is possible on demand!
Type: 4020 Lightning
Slots & Poles: 24N8P
Winding: 2.5 Y
RPM/V: 900
Rm (mOhms): -
Weight (without connectors): 350 g
Body Length: 51.2 mm
Diameter: 49.5 mm
Shaft Length: 22 mm (B shaft, for RAW 500)
Shaft Diameter: 6 mm (B shaft, for RAW 500)
(Other shafts available on demand.)
Mounting holes ans screw size: 4x25xM3 and 4x30xM4
More data coming soon!
