DualSky XC1010BA V2 10 Amp ESC


Availability:
Ready to send: 1-2 days
Appeared on: 17/12/2012
Art. Nr: DSK-XC1010BA
Category: Speed Controllers (ESC)


... Continue reading

20,99 €

Inc. Vat 21.00%, include Shipping

Notify me when available Avisar

Quantity : Note Not available!

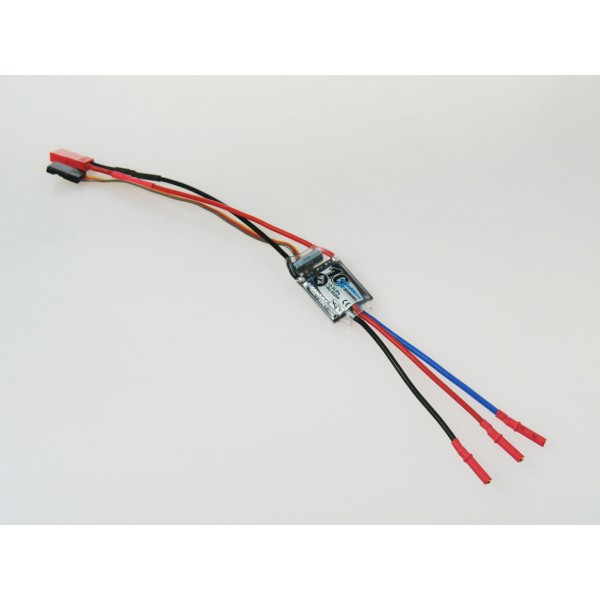

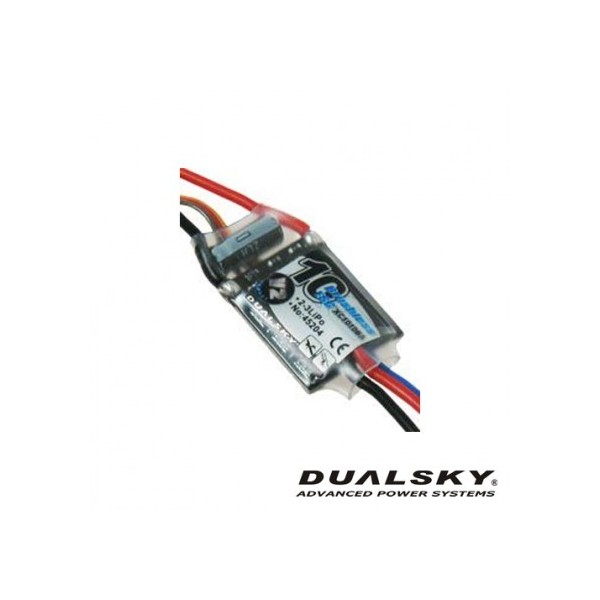

Micro, light Xcontroller V2. XC1010BA, ESC 10A

Features:

● The new designed 2nd version software and hardware have many new features.
● Supports all motor types up to 210,000 rpm(2 Poles motors).
● Extremely low resistance, factory high quality MosFETs, for high current usage.
● Adjustable cut-off, either motor stop or reduction in power.
● DLBM on/off - Dualsky Linear Brake Mode. Brake strength can be adjusted by
   transmitter when switch on.
● Full protection features including: Low voltage cut-off, Over heating protection,
   signal loss auto cut-off.
● Normal, Soft or Super-Soft start up modes available, for both fixed wing and
   helicopter setups.
● Smooth and accurate throttle control throughout the range.
● Throttle digital signal sampling, compatible with the signal frequency of 14 ms
   Normal mode and 7 ms high-speed mode (HS Mode).
● Throttle range can be re-calibrated, so suitable for all brands of transmitter.
● Fully PC programmable when used with Dualsky USB link(#45525).
● Compatible with programming card(#45200) for easy re-programming at the field!
● Stable linear BEC power supply, support up to 3S Lipo.


Specification:

Dimensions: 28x 18x 6mm(L x W x D)
Weight: 7
.5g

Number of Cell: NiXX 5-10, 6-12V
                         LiPo 2-3, 7.4-11.1V

Resistance(Ri)(Ohm): 0.0186
Max Cont.  Current & Max Cont.Output: 10A, 105W
Max Burst Current & Max Burst Output: 15A, 153W

BEC / Dissipative Power: 5V/1A (1.2W, Linear)
Programmable: Throttle + ProgCARD V2

Input Wires: 100mm, 20AWG, JST
Output Wires: 65mm, 20AWG, DB2
Signal Wire: 120MM JR


Applications:
300 Class Sports
