KDE Direct Flybarless Main Rotor Housing


Disponibilidad:
Listo para enviar: 1 a 2 días laborales
Aparecido el: 28/11/2012
Art. Nr: AT550600-MRHFB
Categoría Accesorios


... Seguir leyendo

75,99 €

Inc. 21.00% IVA., incluir Envío

Cantidad: Nota

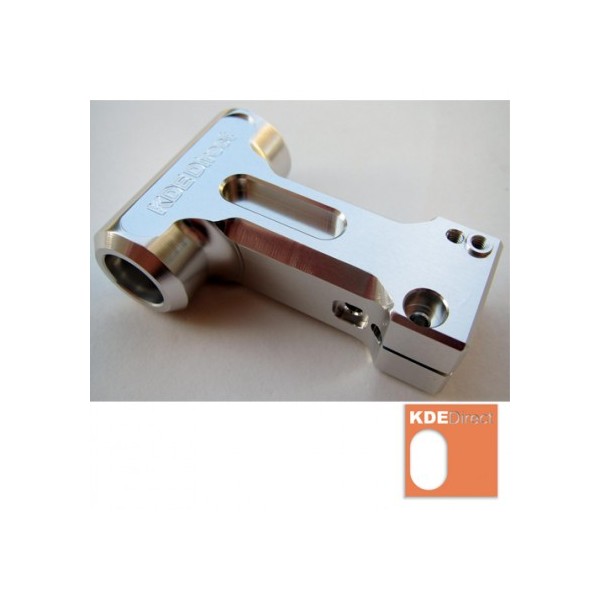

KDE Direct Flybarless Main Rotor Housing AT550/600-MRHFB

Material:
Aluminum 6061-T6

Models:
all ALIGN TREX 550E, 600E, 600ESP, and 600N series (replaces stock Align part #HN6112 and #H55007).

Note: the Flybarless Main Rotor Housing upgrade encompasses the latest technologies for optimum setup of the flybarless mechanics. The new design incorporates a series of performance enhancements including:

(1) direct-mounted washout arms to guarantee true-parallel alignment of the linkage rods and an interaction-free setup to the main shaft. No more hassles with the main shaft clamp and difficult linkage alignment, simply bolt on the washout arms and go fly with and optimal setup every flight.

(2) M3 clamp mechanism is built into the upgrade design, providing a solid hold to the main shaft that is truly noticeable in flight with a significant reduction in shaking, bobbing, and other effects evident under hard 3D flights.

Design Notice:
to achieve the best possible setup and perfect alignment of the flight mechanics, it is recommended to use the following ALIGN flybarless components with the new design:

Main Shaft (600 Series): HN6118, TREX 600FL Main Shaft
Main Shaft (550 Series): H55006, TREX 550FL Main Shaft
Washout Arms: HN6114, TREX 600FL Metal Washout Control Arms
Linkages: H55047, TREX 550/600FL Linkage Rod (A) Set
