130X Tail Servo Support

Lynx Heli Innovations has redesigned the standard 130 X plastic tail servo support, using aluminum alloy.

We designed a single X shaped plate that supports the tail servo perfectly. Like any Lynx part we aim for the strongest part with the lightest weight. We always look for upgrades that will not compromise helicopter performance.

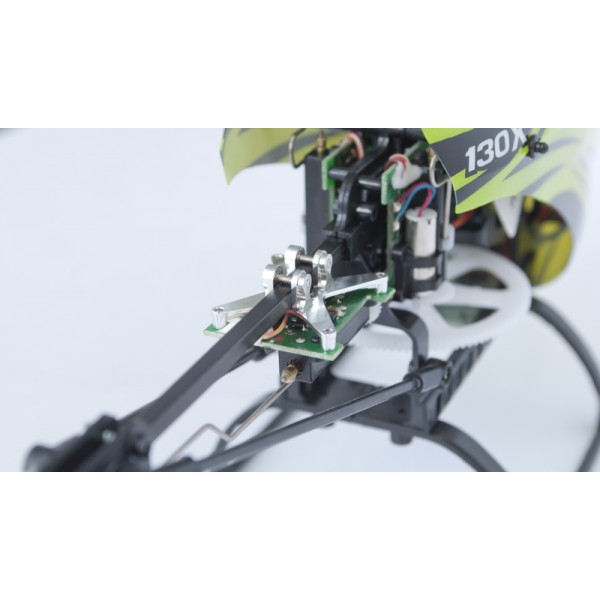

The details and design of this tail servo support add top performance and an exotic look to your 130X tail system.

FEATURES:

- Direct replacement for the standard 130 X tail parts.

- Optimized tail servo support protecting the servo board

- Increased rigidity of the tail servo improving tail system performance.

- FEA (Final Elements Analysis) design assistance, achieving the lightest weight with the maximum strength.

TECHNICAL SPECIFICATIONS:

- Tail servo support material: Aluminum 7075-T6 – clear anodized finish.

- Screw material: Carbon steel plated

- Tail case assembled weight: 1.35g

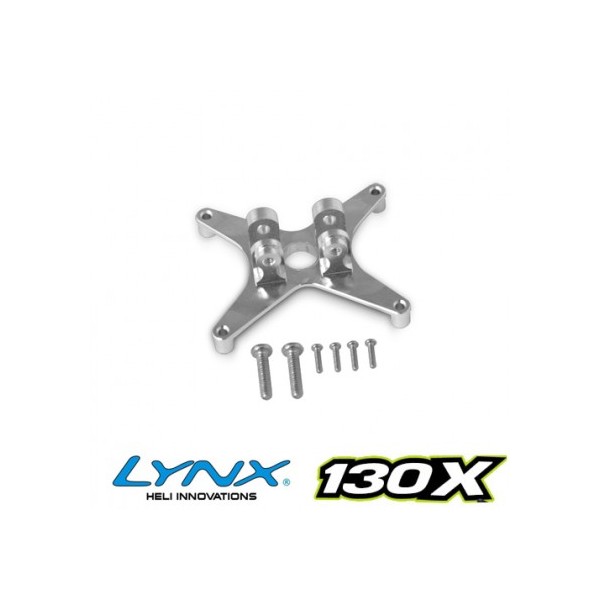

PACKING LIST:

1 x CNC 130X tail servo support

4 x M1.2x4 Pan head screws

2 x M1.2x6 Pan head screws
