OXY2 215 PRO

Oxy 2 210 PRO is the answer for the pilot that want an OXY 2 Stretch with superior performances thanks some strategical CNC Upgraded parts.

After many month of test and continue feedback with Dealers, Customers and Pilots, Oxy decided to release the OXY 2 215 PRO.

We work with SPORT Components and ex-Factory Edition Editions in order to offer the best smart UPGRADED OXY 2 optimizing cost and retail price.

OXY 2 215 PRO versus OXY 2 215 SPORT Edition Specification Difference:

- CNC Main Grip CNC

- CNC Swashplate

- CNC Upper and Lower Bearing Block

- CNC Tail Grip

- Fiberglass Canopy.

Basically OXY 2 PRO is the similar the 215 Sport, but the Upgrade parts choses assure the ultimate performance for the pro pilots and for who looking on ultimate performances and finish look.

Oxy Heli by Lynx

The Oxy Helicopter project is a natural evolution for Lynx Helicopters. Experience gained over many years of producing high quality upgrades has placed us in a unique position to enter the helicopter market. Our upgrades have been passionately developed by a core team of engineers and designers, delivering several breakthrough products which improved performance, reliability and maintenance costs of many helicopters. We see the market for small helicopters growing. Flybarless systems have allowed flight characteristics to mimic much larger models, and small brushless motors really pump out the power! It is relatively easy to produce a new helicopter. But much more challenging to design one which can be easily repaired and fly well again after a crash. Here at Oxy, were not only engineers and designers – we are pilots, and have a clear vision what both 3D pilots and sport pilots require in a helicopter!

The Oxy Helicopter – the Lynx Division

Using the feedback gained from the upgrade market, our unique consolidated design and manufacturing practices, access to the best materials, a huge team of enthusiast supporters and test pilots from all over the world, as well as a powerful distributor network, Lynx Heli has decided to meet market demand for high performance helicopters by forming Oxy Helicopters. We will foster open collaboration with dealers and customers in the community to have the best designs possible.

Our Philosophy: Top Performance and Quality First!

There is a market emerging for high performance helicopters in the 180 to 350mm blade size. Customers don’t want a whole package – they want to pick preferred components like FBL system, blades, motors, servos, ESC, etc. Oxy Helicopters will have top-class, explosive performance, fitting for the best 3D pilots in the world. They will also appeal to sport pilots looking for a high quality, versatile product which is simple to build, maintain and set-up, with clean lines and is crash tolerant. The Oxy Helicopter project is the synthesis of years of ideas. We keep our helicopters simple, robust, light, and of a distinctive style.

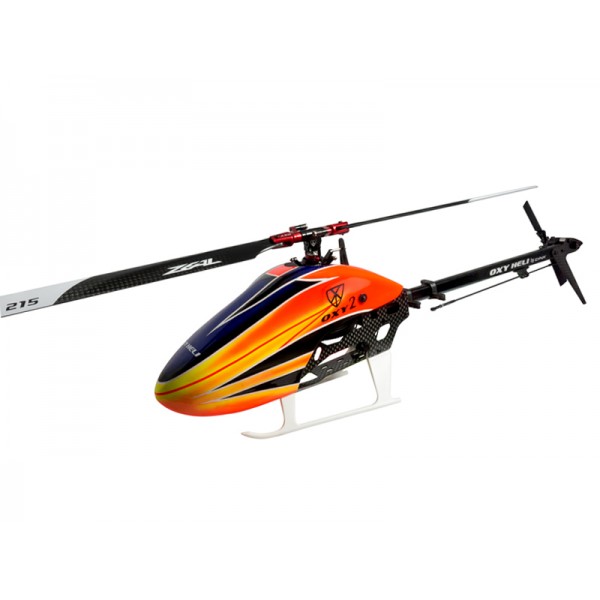

The Oxy 2 215 PRO

Oxy 2 215 PRO is a 215 CF mm blade electric heli, with belt driven tail rotor, suitable for sub micro or glider servos. It is designed to handle high rpms (up to 6000), and he come with Zeal 215 CF Main Blade.

Oxy 2 215 PRO is an amazing Oxy Heli, in small package, to be with you anytime and fly anywhere, CNC Upgraded parts were need and exotic Techno Polymer material assure the best performance and made the Oxy 2 215 PRO the leading OXY 2 Series.

• Main features

- Heli designed for intense (insane) 3D performance.

- Ultra rigid frame with low screw count, super easy to assembly and service.

- Double main shaft supports with innovative adjustable servo size options.

- CNC and Quality Injection Molded Techno Polymers Parts.

- Lightweight, Big Canopy Volume for high visibility. High-end Fiberglass Canopy.

- Innovative Lynx-Oxy Cyclic Servo Diagram that keep all three servos always visible and easy serviceable.

- Innovative Landing Gear System with Left and Right ultra-fast releasing Skids.

• Main rotor

- Semi rigid DFC head system for precise performance. Innovative Lynx-Oxy Semi rigid Dampening System.

- Double Radial Bearing and Thrust bearings on Main Grip.

- Double Radial Bearing on Tail Grip.

- Oversize hardened spindle.

- Swash Plate 120° CCPM – Innovative Lynx-Oxy Serviceable System.

- Swashplate linkages with optimized geometry.

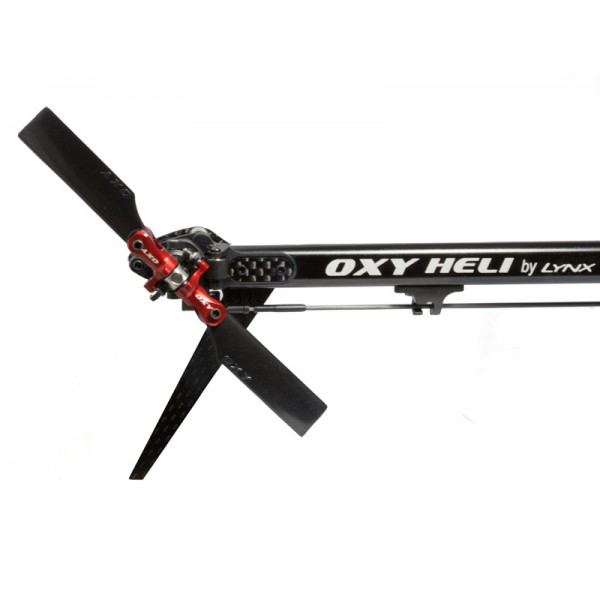

• Tail system

- Belt drive tail (low parts count and low crash cost).

- Innovative delta box tail boom with no requirement for boom supports.

- Tail optimized to minimize vibration and servo load at high tail speed

- Rigid carbon fiber 1mm diameter tail push rod for the increased tail control.

Electronics & Power system – not included on the Kit

- Battery tray fits a variety of battery packs 3s -4s (800 to 1350 mAh) , Max Dimension: Length 72mm - High 25mm - With 35mm – 115gr.

- ESC support suitable for 25 to 35A ESC – suggested:  Hobbywing 25AV4.

- Motor Options: EOX Lynx 1611 – 5500 KV or EOX Lynx 1911 – 3600 KV or similar motor with 2 or 2.5mm motor shaft. Suggest KV from 3600 to 5500 in function your battery set up. Max Motor Dimension: Outer Diameter 26mm – Length 24mm (Example: EOX 1911 - 3600Kv or BL250MX – 3600Kv).

- Hardened Steel Pinion included in the kit: 11T 2mm Shaft (Oxy Lynx also offer all optional pinions; click here for Pinion Options).

- Suitable for Sub Micro or Glider Cyclic and tail servos.

Suggested Cyclic Servos:

- Lynx LX9004 - Lynx Servo DS-895-HV

- Lynx LX1817 - Lynx Servo DS-895-HV_Aluminum CNC Case - 3PC Set

- H2060

- KST X08 or 245MG

- MSK DS450

Note: Other Servo can fit, for fully compatibility servo check User Manual Servo Size.

Suggested Tail  Servos:

- LX2616 Tail servo H0988UHS

- EFLRDS76TJ

- Spektrum H3060

- Blue Arrow D1680UPS-HV

- MKS DS480

- Note: Other Servo can fit, for fully compatibility servo check User Manual Servo Size

- Smart and clean electronic wiring set up.

- Smart and protected FBL unit position – suggested FBL MSH U-Brain or MINI Brain – U-Ikon or MINI Ikon – Mikado Neo - Spartan Pico or Nano – Micro Beast.

Specifications

- Length: 435mm Height: 138mm Width: 70mm

- Main rotor blade length: 210 to 215 mm

- Tail blade length: 38mm to 41mm

- Main gear: 113T 0.4 Mod – Straight Tooth

- Wide head speed range: 3500 for sport flying up to 6000 for insane 3D

- Tail gear ratio 3.437 (16T pulley) , optional Tail Shaft Pulley 15T for low Head Speed set up

- Approximate RTF weight: 330g with 3s 800mAh battery– suitable for 3 minutes of intense 3D at 5500rpm

OXY2 215 – PRO EDITION KIT CONTENTS:

1 x Oxy 2 215 PRO Kit with DFC Head System.

1 x Oxy 2 Fiberglass Canopy.

1 x set Zeal Carbon Fiber Main Blade 215 mm.

1 x set Oxy Plastic Tail Blade 41mm, Back Color.

1 x set Colored Tail Fin Sticker (Yellow – White – Orange - Green)

1 x Swash Plate / Tail Pitch Slider Lever Tools with Zero Pitch function

1 x Serial Number Card – Registration Serial Number in www.oxyheli.com , every 3 month we will extract a serial number from our registered data base that win 200 usd coupon to spend in our web site Lynx Heli Innovations www.lynxheli.com
