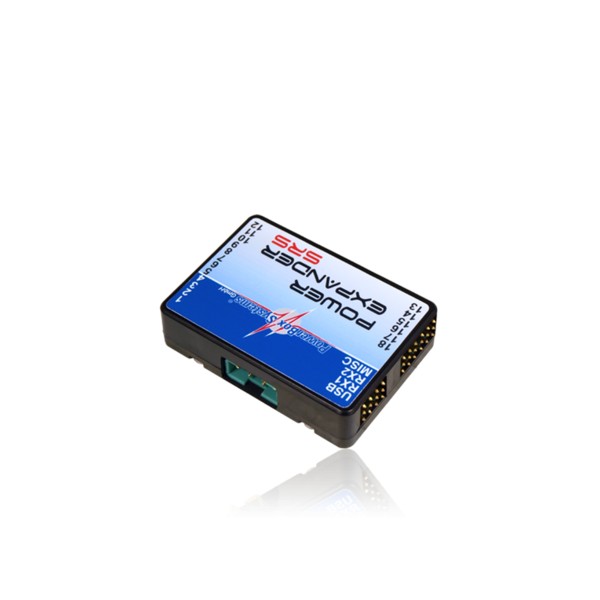

PowerExpander SRS with MPX Conentor


Disponibilidad:
Listo para enviar: 3 a 5 días laborables
Aparecido el: 02/05/2017
Art. Nr: 3430
Categoría PowerBox Systems


... Seguir leyendo

129,00 €

Inc. 21.00% IVA., incluir Envío

Cantidad: Nota

Product description

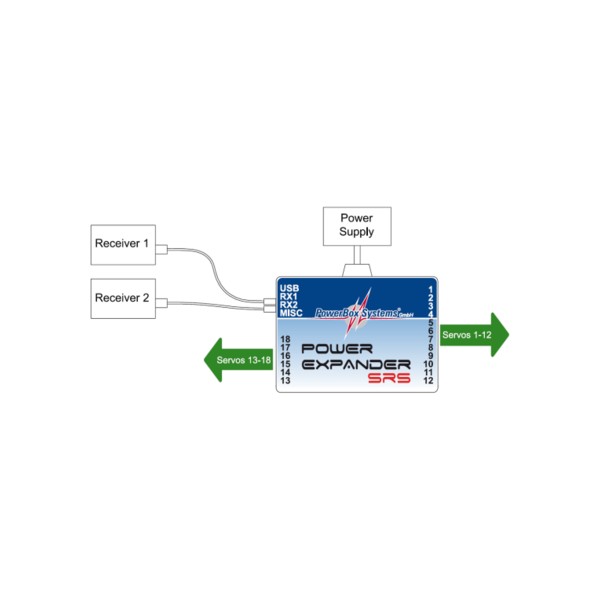

The PowerExpander SRS makes it possible to exploit all the channels provided by your radio control system when using small but highly-specified receivers. Safety is also significantly enhanced, because two receivers can be connected to the PowerExpander SRS. The integral Serial Receiver System selects any receiver, and - if an error should occur - switches over automatically to the receiver which is still operating.

This represents a simple method of doubling the number of receiver aerials. The unit is fitted with a high-current socket to ensure that the power supply can cope with the large number of channels which it makes available. It also features an output carrying the S-BUS signal, which makes it possible to use any radio control system in conjunction with an S-BUS wiring arrangement.

As powersupply we recommend the PowerBox BaseLog or the PowerBox Gemini II.

Features:

  • Access to a maximum of eighteen channels
  • Simple wiring: the receivers are connected using a serial link
  • Integral SRS, allowing the use of two receivers
  • Compatible with: Futaba, Spektrum, Graupner, Jeti, Multiplex and JR
  • High-current power socket MPX or Deans
  • S-BUS output for use in a BUS system
  • Hold/Failsafe option for each output individual
  • User-variable frame rate
  • Can be updated using the PowerBox USB Interface

Operating voltage4.0V - 9.0V
Power supply2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state25mA
Maximum load currentPeak 30A
Signal inputserial
Supported RC systemsFutaba, Spektrum, Jeti, Graupner, JR, Multiplex
Receiver redundancySRS
Channels18
