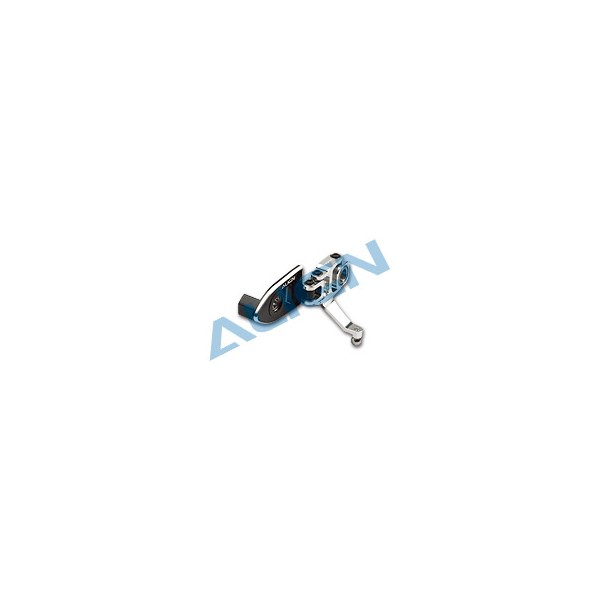

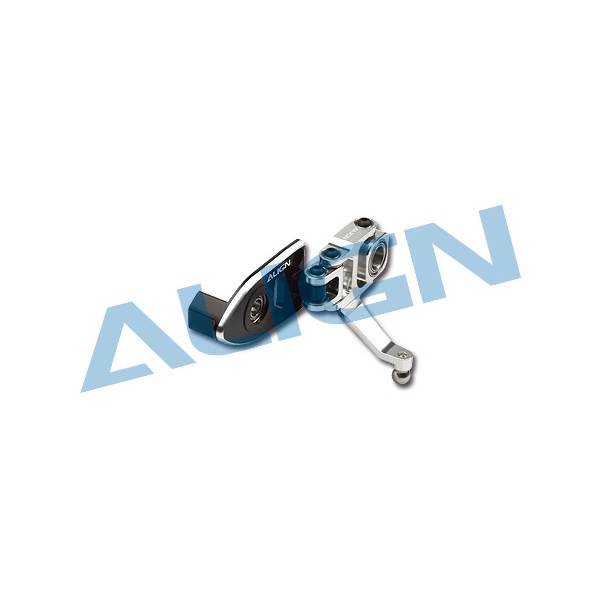

500 Metal Tail Pitch Assembly

●Utilizes dual point attachment design for zero play and higher precision control feel.
●Constructed with CNC aluminum alloy, with precision ball bearing at moving points, improving structure rigidity and smoothness, allowing rudder control to be more precise and smooth.
●6061-T6 Aluminum alloy material and CNC processed.

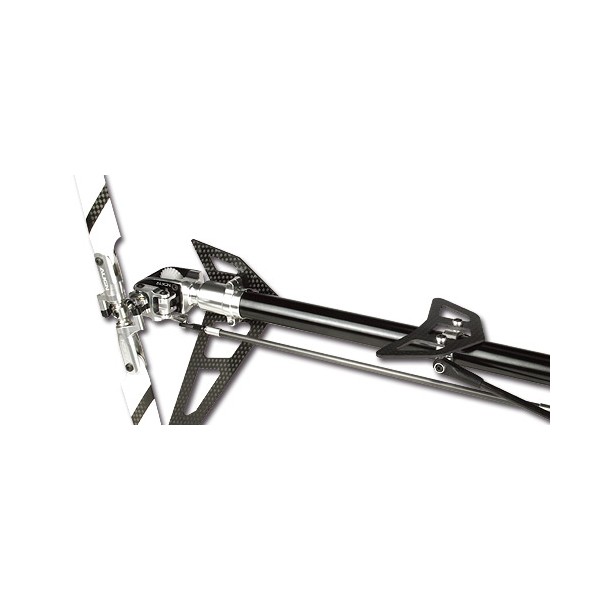

●Use for T-REX 500PRO/EFL PRO.

Specification
●I-shaped Arm × 1
●Mount Link × 1
●Metal plate(R) × 1
●Bearing 684ZZ × 1(Φ4xΦ9x4mm)
●Bearing holder × 1(11.5x9x12.5mm )
●Linkage ball A(M2x3.5) × 1(Φ4.75x8.18mm)
●Bearing mount washer × 1(Φ6x Φ7.4x3mm)
●Bearing FMR52ZZ × 6(Φ2xΦ5xΦ6x2.3mm)
●Bearing MR106ZZ × 2(Φ6xΦ10x3mm)
●Socket button head screw × 6(M2x4mm)
